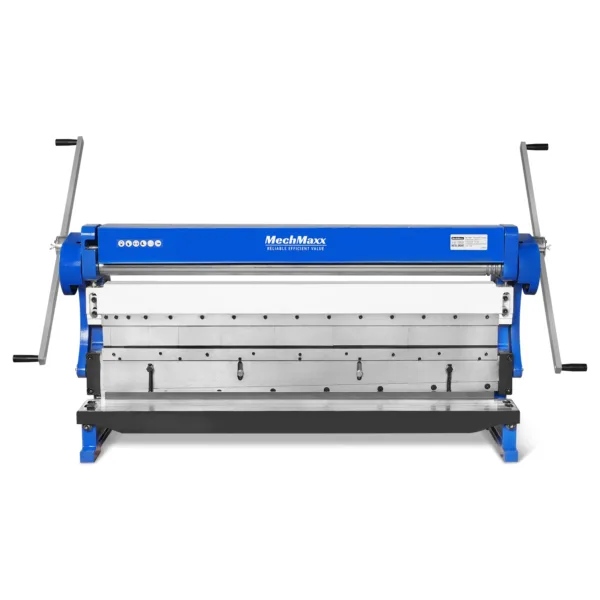

52-inch 3-in-1 Heavy Duty Pan and Box Brake – Slip Roll, Shear, Bending Machine for Sheet Metal, 16 Gauge Mild Steel, Adjustable Fingers, Heavy…

Slip Roll Function
Minimum Rolling Diameter
2.36″ (60 mm)
Maximum Rolling Thickness
16 Ga. mild steel
Wire Sizes
3/16″, 1/4″, 5/16″
Roller Type
Slip Rollers for straightening and forming cylinders, cones, and arcs
Brake Function
Maximum Bending Angle
90°
Maximum Bending Thickness
16 Ga. mild steel
Minimum Reverse Bend
1/2″
Maximum Height of Pan/Box Brake Sides
2-3/8″ (60 mm)
Finger Configuration
9 adjustable fingers: 1″, 2″, 3″, 4″, 5-1/2″, 7″, 8″, 10″, 10″
Shear Function
Shearing Capacity
16 Ga. mild steel
Blades
Reversible upper shear blade and fixed lower table blade
Cutting Method
Upper movable shear blade lowers past the fixed table blade
Shear Length
52″ (maximum cutting length)
Blade Adjustment
Adjustable for varying thickness and material types
