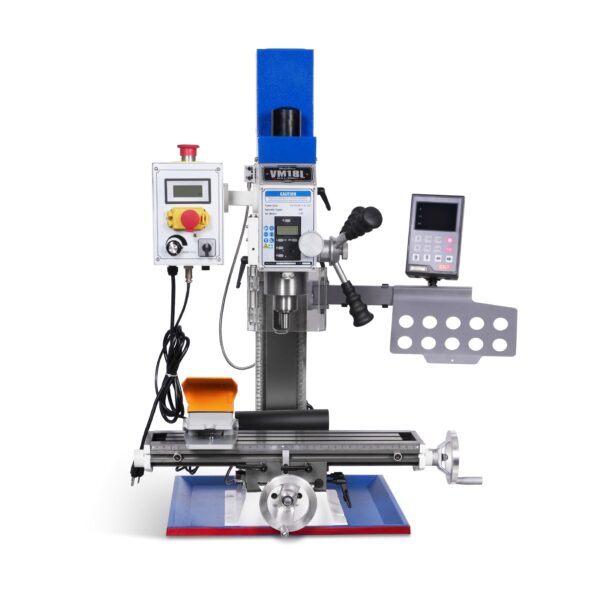

6″x20” Benchtop Mill Drill Machine with DRO Brushless Motor, Variable Speed, R8 Spindle, 1 HP, 110V, Compact Milling Drilling Tool for Garage…

Spindle Specifications
Spindle Taper
R8
Spindle Travel
2″(50mm)
Quill Diameter
Ø2-3/8”(60mm)
Spindle Speed Range
0-2500RPM
Number of Speed Steps
Variable
Drawbar Thread Size
7/16″-20”
Head Tilt Angle
±90°
Spindle to Table Distance
10-7/8″(275mm)
Spindle to Column Distance
6-5/8″(170mm)
Cutting Capacity
Drilling Capacity
3/4″(18 mm)
End Milling Capacity
1/2″(12mm)
Face Milling Capacity
2″(50mm)
Table & Travel
Table Size
5-1/2″x19-5/8″(140x500mm)
T-Slot Size / No. / Centers
3 X 3/8”(10mm)
X-Axis Travel
8-5/8”(220mm)
Y-Axis Travel
6-5/16”(160mm)
Z-Axis Travel
10-27/32”(275mm)
Construction & Drive
Column Type
Square Column，Dovetail Slide
Drive Type
Belt
Motor Power
1HP 110V 1PH Brushless
Motor Type
DC  Brushless
Electrical & Setup
Net / Gross Weight
180/203lbs(82/92.5KG)
Overall Dimensions
20”x19”x31”(506X476X788mm)
Base Size
11”x9” (280x220mm)
Shipping Dimensions
24”x22”x34”(610X560X860mm)
