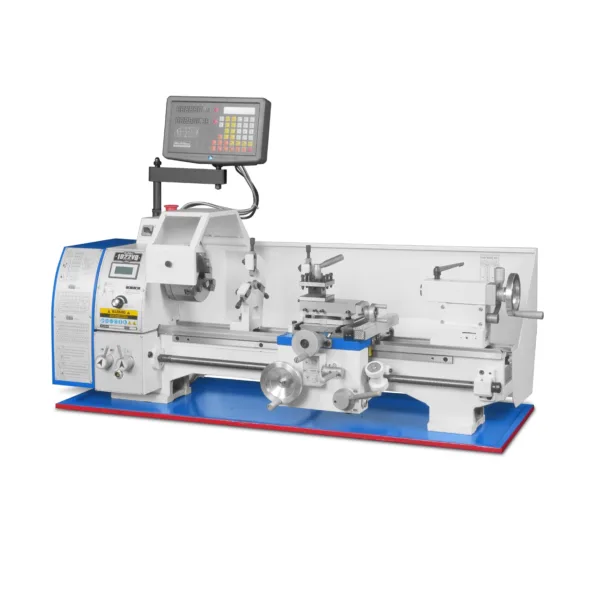

10” x 22” Industrial Metal Lathe Machine with DRO High Precision Benchtop 1.5HP Brushless Motor 0-2000 RPM Variable Speed Metal Working Machine…
£2,139.43
This product is currently sold out!
No worries! Please enter your e-mail address and we will promptly notify you as soon as the item is back in stock.
Great! You have been added to the waitlist for this product. Please check your inbox and confirm the subscription to this waitlist.
Out of stock
Specification
1022VD
Motor
1.5 HP, 110V, single-phase, 10A
Swing Over Bed
9-7/8″ (250 mm)
Swing Over Cross Slide
5-1/2″ (140 mm)
Swing Over Saddle
5″ (127 mm)
Distance Between Centers
21-5/8″ (550 mm)
Bed Width
5-3/8″ (135mm)
Spindle Bore
1-1/2″ (38 mm)
Spindle Mount
Intrinsic back plate
Spindle Type
One-piece Spindle
Spindle Taper
MT#5
Tailstock Taper
MT#2
Tailstock Quill Travel
3″ (75 mm)
Cross Slide Travel
5″ (127 mm)
Compound Slide Travel
3″ (75 mm)
Carriage Travel
19-5/8″(500mm)
Spindle Speeds
0–2000 RPM
Number of Speed Ranges
Variable
Longitudinal Feeds
0.0025 – 0.014 in./rev.
Transverse Feed Rate
0.0014 – 0.004 in./rev.
Leadscrew Size & Pitch
20mm(8TPI)
Threading Capacity – Inch
8–80 TPI(37KINDS)
Threading Capacity – Metric
0.35 – 3.0 mm(21kinds)
Maximum Tool Bit Size
15/32”(12mm)
Thread Dial Indicator
YES
Coolant System
OPTIONAL
Overall Dimensions
44.0″ × 25.0″ × 19.0″ (1220 × 635 × 480 mm)
Approximate Shipping Weight
308/352 lbs (140/160 kg)
