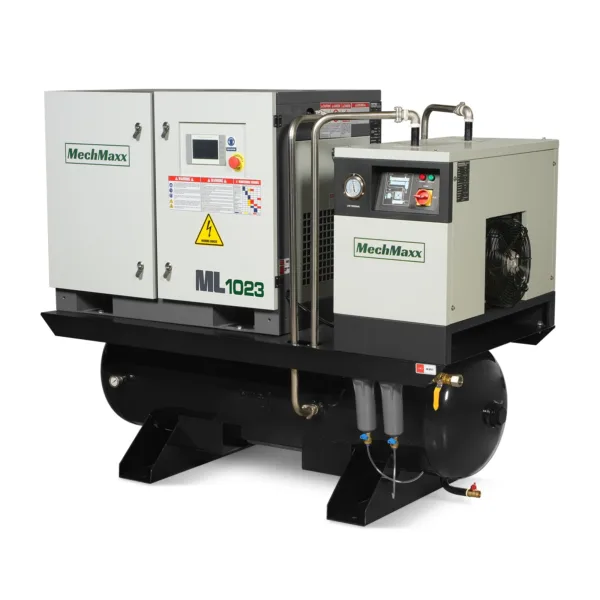

10HP Combined Rotary Screw Air Compressor with Dryer & 66-Gal ASME Tank | 32 CFM, 116 PSI, 230V 3-Phase – Industrial Grade

Air Compressor Information
Model
ML1023
Voltage
230V 3PH 60HZ（L1+L2+L3,G）
Air Flow Capacity
32.8CFM
Wire Gauge
AWG7
Air Outlet Thread
3/4″ NPT
Oil Tank Capacity
1.05Gal (4L)
Rated Power
10HP
Rated Pressure
116 PSI (0.8 MPa)
Noise Level
65dba
Motor Speed
3500RPM
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Recommended Oil Grade
S3R46
Oil Sight Glass
Yes
Pump Drive
Belt Drive
Air Tank & Refrigerated Air Dryer Information
Working Pressure
≤145PSI/1.0MPa
Design Pressure
145PSI/1.0MPa
Max Allowable Working Pressure
145PSI/1.0MPa
Working Temprerature
≤302℉/150℃
Design Temprerature
302℉/150℃
Maximum Design Metal Temperature
17.6℉/-8℃
Volume
66GAL/250L
Air Dryer Capacity Flow
50CFM
　
　
Machine Size:
67.5″ x 31.5″ x 54″
Packing Size:
68.9″ x 34.6″ x 61″
N.W.:/ G.W.:
935 lb/1056 lb
