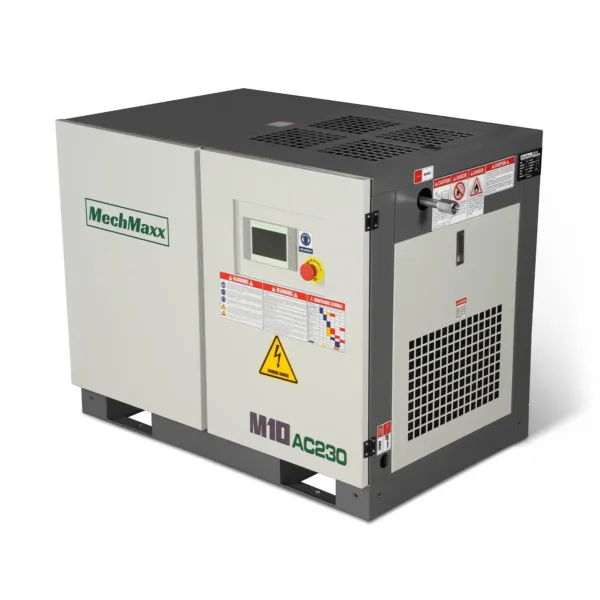

10HP Rotary Screw Air Compressor – 32 CFM, 116 PSI, 230V 3-Phase | Industrial-Grade

Model
M10AC230
Voltage
230V 3PH 60HZ（L1+L2+L3,G）
Air Flow Capacity
32.8CFM
Wire Gauge
AWG7
Air Outlet Thread
1/2″NPT
Oil Tank Capacity
1.05Gal (4L)
Maximum Current
28.5A
Rated Power
10HP
Rated Pressure
116 PSI (0.8 MPa)
Noise Level
65dba
Motor Speed
3500RPM
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Recommended Oil Grade
S3R46
Oil Sight Glass
Yes
Pump Drive
Belt Drive
Standard Adaptor
1/2″NPT
Machine Size:
39.3″ x 28.3″ x 31.5″
Packing Size:
41.3″ x 29.5″ x 37.4″
N.W.:/ G.W.:
419 lbs/473 lbs
