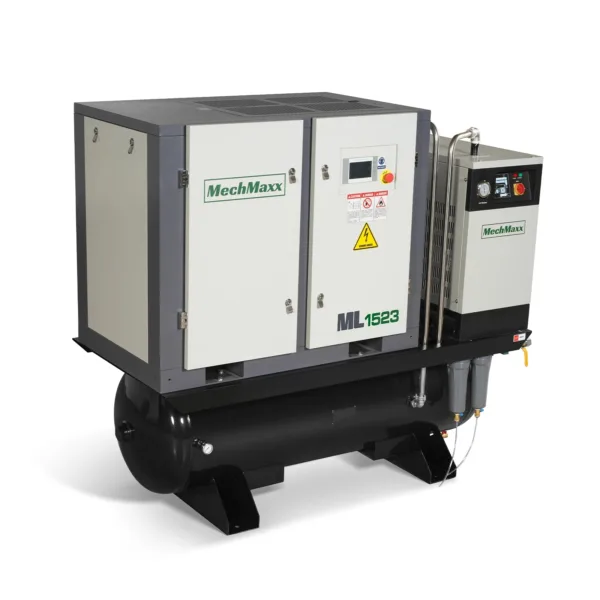

15HP Combined Rotary Screw Air Compressor with Dryer & 105-Gal ASME Tank | 45 CFM, 116 PSI, 230V 3-Phase – Industrial Grade

Air Compressor Information
Model
ML1523
Voltage
230V 3PH 60HZ（L1+L2+L3,G）
Air Flow Capacity
45.9CFM
Wire Gauge
AWG5
Air Outlet Thread
1″NPT
Oil Tank Capacity
2.64Gal (10L)
Rated Power
15HP
Starting Method
Star-Delta (Wye-Delta) Start
Rated Pressure
116 PSI (0.8 MPa)
Noise Level
65dba
Motor Speed
3515RPM
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Recommended Oil Grade
S3R46
Oil Sight Glass
Yes
Pump Drive
Belt Drive
Air Tank & Refrigerated Air Dryer Information
Working Pressure
≤145PSI/1.0MPa
Design Pressure
145PSI/1.0MPa
Max Allowable Working Pressure
145PSI/1.0MPa
Working Temprerature
≤302℉/150℃
Design Temprerature
302℉/150℃
Maximum Design Metal Temperature
17.6℉/-8℃
Air Tank Capacity
400L / 105.6GAL
Air Dryer Capacity Flow
100CFM
　
　
Machine Size:
72.8″ x 33.5″ x 66.1″
Packing Size:
75.6″ x 38.2″ x 72.8″
N.W.:/ G.W.:
1146 lbs / 1364 lbs
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
