20FT HVLS Industrial Ceiling Fan 220V 1-Phase – Energy Efficient Large Area Air Circulation for Fan Warehouses & Factories, 20FT1PH

Model
20FT1PH
Certifications
cULus,CE,SAA
Fan Diameter
20FT
Number of Blades
5
Cooling Coverage
12325ft²
Voltage
220V ±10% 1PH（L+N）
Full Load Current
4.4 A
Fan Watts
1.0KW
RPM Range
10-62 RPM
Air Flow@Max Speed
517,360 CFM
Drive Motor
Permanent Magnet Synchronous Motor
Speed
Variable Speed
Drive Type
Direct
Blade Material
Al-Mg
Fan Weight
265LBS
Noise Level
＜40dB
Protection Level(Motor)
IP55
Standard Includes

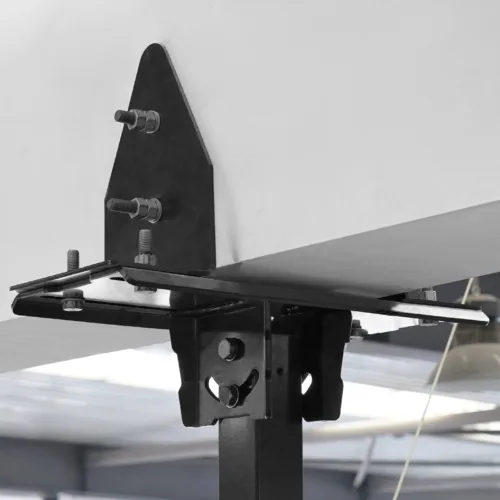

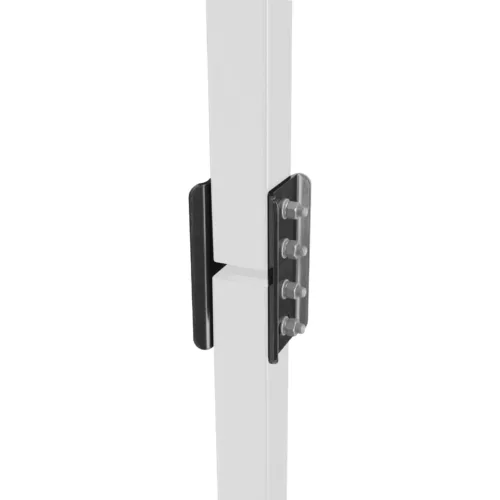

I-Beam Structure Mounting Kits;59″ Extension Tube; Control Cabinet; 131Wire Conduit;131’Wire Rope;164′ UL Listed Wire.
Packing Size
Box A:34.6″x31.5″x20.9″Box B:115.7″x13.4″x10.6″
Gross Weight
Box A: 356 LBSBox B: 158 LBS
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
