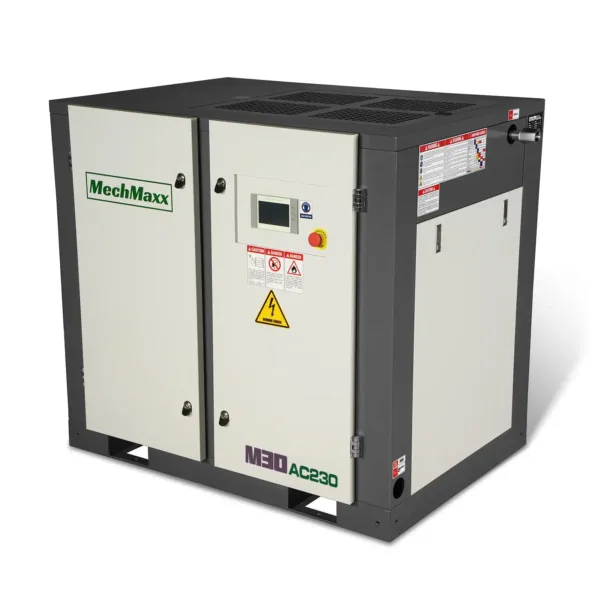

30HP Rotary Screw Air Compressor – 106 CFM, 116 PSI, 230V 3-Phase | Industrial-Grade

Voltage
230V 3PH 60HZ（L1+L2+L3,G）
Air Flow Capacity
106CFM
Wire Gauge
AWG3
Air Outlet Thread
1″NPT
Oil Tank Capacity
3.432Gal (13L)
Maximum Current
80.3A
Rated Power
30HP
Starting Method
Star-Delta (Wye-Delta) Start
Rated Pressure
116 PSI (0.8 MPa)
Noise Level
65dba
Motor Speed
3530RPM
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Recommended Oil Grade
S3R46
Oil Sight Glass
Yes
Pump Drive
Belt Drive
Standard Adaptor
1″ NPT
Machine Size:
51″ x 37.5″ x 47″
Packing Size:
52.4″ x 39.4″ x 52.4″
N.W.:/ G.W.:
970 lbs/1056 lbs
