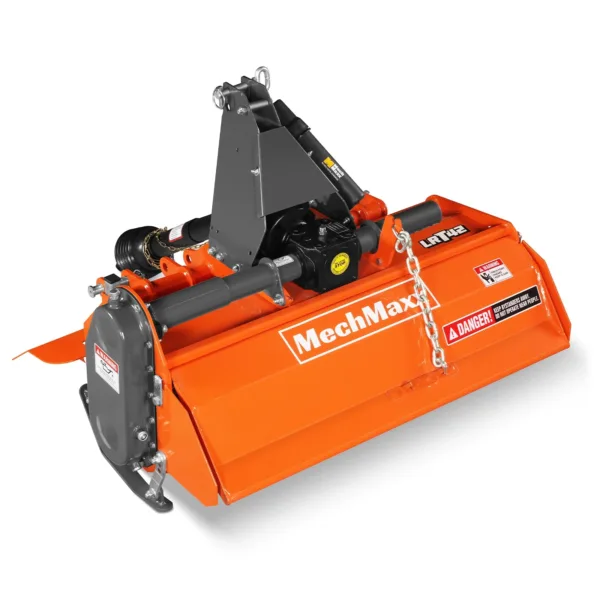

42 in Rotary Tiller, 3 Point Hitch Cat.1, Chain Drive, PTO Shaft Included with Shear Bolt, 15–35 HP, LRT42

Working Width
42 in
Number of Flanges
5
Overall Dimensions (L×W×H)
50.6 x 30.6 x 32 in
Number of Blades
20
Max Working Depth
5 in
Blade Arrangement
4 Blades per Flange
Offset Capability
4 in Left / Right from Center
Blade Type
Heat-Treated 60Si2Mn Steel “C”-Shaped
Skid Shoes
Adjustable Depth Control
PTO Shaft Included
Yes
Rotor Bearing
NSK Bearing
PTO Shaft
Series 4 PTO Shaft with Shear Bolt, 1-3/8″ × 6-Spline (Both Ends), Length: 27.5-30 in
Rotor Rotation
Forward
Tractor PTO Speed
540 RPM
Rotor Speed @ 540 PTO RPM
284 RPM
Recommended PTO HP
15-35 HP
Rotor Diameter
2.5 in
3 Point Hitch
Cat.1
Rotor Swing Diameter
13.8 in
Quick Hitch Compatibility
Cat.1 Quick Hitch Compatible
Side Drive Type
Chain Driven
Rear Deflector
Hinged
Side Box Lubrication
SAE 80W-90, Approx. 1 L (1.06 qt)NOTE: SHIPPED WITHOUT OIL.
Parking Stand Included
Yes
Main Gearbox
Cast Iron Oil-Bath Gearbox, Gear Ratio 1.46:1
Packing Size (L×W×H)
51.97 x 24.41 x 25.59 in
Gearbox Lubrication
SAE 80W-90, Approx. 0.5L (0.53 qt)NOTE: SHIPPED WITHOUT OIL.
Weight (N.W/G.W.)
308.64/380.29 lbs
