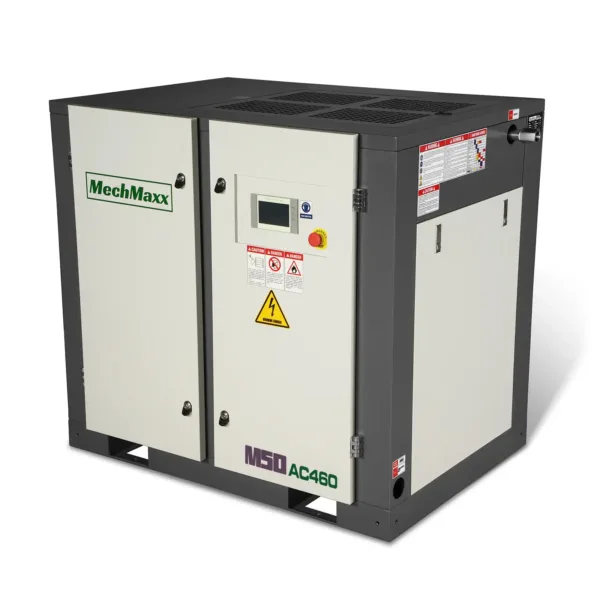

50HP Rotary Screw Air Compressor – 220 CFM, 116 PSI, 460V 3-Phase | Industrial-Grade

Voltage
460V 3PH 60HZ（L1+L2+L3,G）
Air Flow Capacity
220CFM
Wire Gauge
AWG3
Air Outlet Thread
1-1/2“NPT
Oil Tank Capacity
6.6Gal (25L)
Maximum Current
66.8A
Rated Power
50HP
Starting Method
Star-Delta (Wye-Delta) Start
Rated Pressure
116 PSI (0.8 MPa)
Noise Level
65dba
Motor Speed
3540RPM
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Recommended Oil Grade
S3R46
Oil Sight Glass
Yes
Pump Drive
Belt Drive
Standard Adaptor
1-1/2″ NPT
Machine Size:
59″ x 43″ x 51.2″
Packing Size:
60.6″ x 44″ x 57.5″
N.W.:/ G.W.:
1366 lbs/1485 lbs
