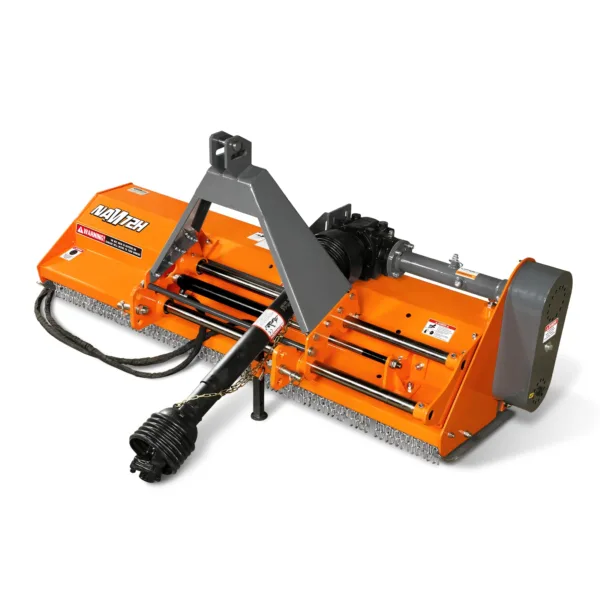

72” PTO Flail Mower with Hydraulic Side Shift 3 Point 45-85hp , NAM72H

Engine Power Required
45-85HP
Number Of Belts
4
Working Width
72in
Belt Size
V Belt 17 X 991
Hydraulic Side Shift
8in(Left Or Right)
Drive Belt Tensioner
Yes
Overall Width
78in
Deck Thickness
0.16in
Blade Ground Clearance
0.6in-2in
Side Plate Thickness
0.25in
Max. Cutting Diameter
Depends On The Type Of Grass
PTO Shaft RPM
540 RPM
Number Of Blades
28
Driveline Shaft Length
T6-LF-39″ with shear bolt ;39″-49″
Blade Type
Hammer
Spline End
1 3/8″ Z6
Blade Weight
1.8lbs
3-Point Hitch
CAT 1
Blade （Tines）Material
Cast Steel
Gearbox Oil Type
85W-90
Rotor Bearing
SKF bearing
Dimensions (L x W x H)
82 x 34 x 26in
Roller Diameter
4in
Finsh
Powder Coat Paint  Galvanized Steel
Rotor Diameter
5in
Warranty
1 year
Rotor Swing Diameter
14in
Weight (N.W./G.W.)
745/871 lbs
Drive Type
Belt drive
