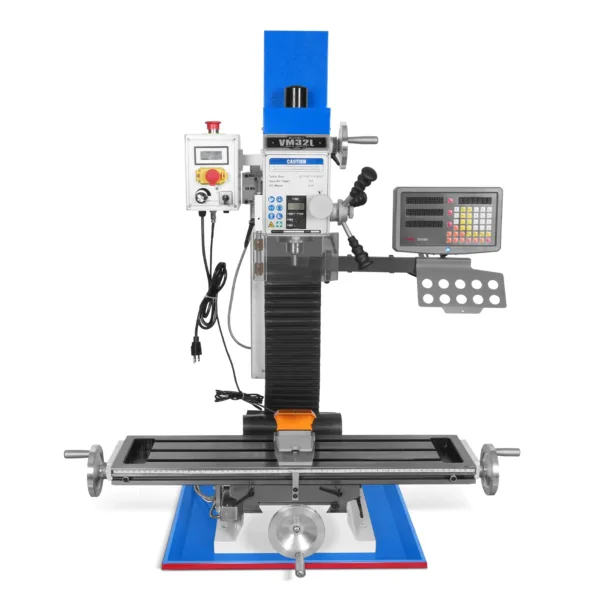

8-1/4″x33” Industrial Benchtop Mill Drill Machine with DRO, Variable Speed, Brushless Motor, R8 Spindle, 2 HP, 110V, Compact Milling Drilling Tool…

Spindle Specifications
Spindle Taper
R8
Spindle Travel
2″(50mm)
Quill Diameter
Ø2-3/4”(70mm)
Spindle Speed Range
0-2500RPM
Number of Speed Steps
Variable
Drawbar Thread Size
7/16″-20”
Head Tilt Angle
±90°
Spindle to Table Distance
18-1/2″(470mm)
Spindle to Column Distance
8-1/4″(210mm)
Cutting Capacity
Drilling Capacity
1-1/4″(32mm)
End Milling Capacity
3/4″(20mm)
Face Milling Capacity
3”(76mm)
Table & Travel
Table Size
8-1/4″x33”(210x840mm)
T-Slot Size / No. / Centers
3 X 9/16”(14mm)
X-Axis Travel
22-7/8”(580mm)
Y-Axis Travel
11-1/32”(280mm)
Z-Axis Travel
18-1/2”(470mm)
Construction & Drive
Column Type
Square Column，Dovetail Slide
Drive Type
Belt
Motor Power
2HP 110V Single-Phase Brushless
Motor Type
DC  Brushless
Electrical & Setup
Net / Gross Weight
462/528lbs(210/240KG)
Overall Dimensions
45”x28”x47”(1130X710X1190mm)
Base Size
21”x15”(535X380mm)
Shipping Dimensions
44”x29”x46”(1100X730X1160mm)
