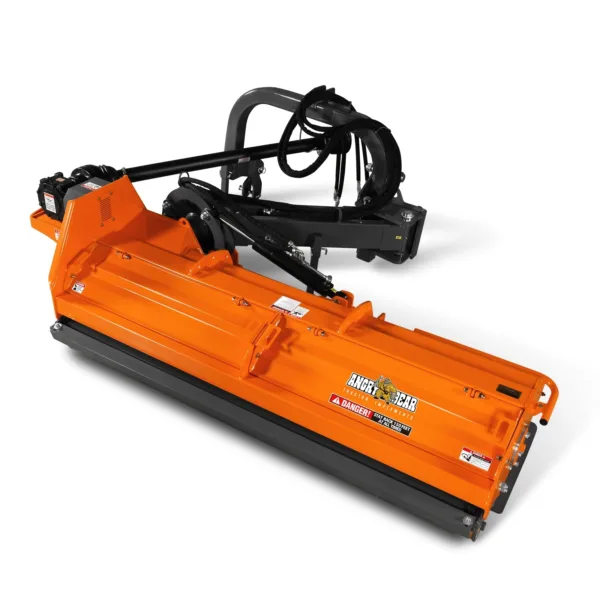

86″ Heavy Duty 3Point Offset Ditch Bank Verge Flail Mower Italy CMR Gearbox, 90-120HP, PTO Driven, VBM86

Power Required
90-120 Hp
Rotor Diameter
5.5 in
Working Width
86 in
Rotor Thickness
0.5 in
Overall Width
101 in
Rear Roller Diameter
6 in
Blade Ground Clearance (Four Gears)
0.2-0.9-1.7-2.4 in
Rear Roller Thickness
0.25 in
Max. Cutting Diameter
Depends On The Type Of Grass
PTO Shaft Speed
540 rpm
Offset Distance from The Center (Maximum)
130 in
Deck Thickness
2 in
Tilt-Up Angle
90°
Side Plate Thickness
0.25 in
Tilt-Down Angle
55°
Driveline Shaft Length
T6-LF-73  With Shear Bolt ; 73in-126in
Number Of Blades
20
Spline End
1.375in  Z6
Number of Belts
4
3-Point Hitch
CAT 2
Blade Type
Hammer
Gearbox 0il Type
85W-90
Blade Weight
2.6 lbs
Finish
Powder Coating
Blade Material
Cast Steel
Warranty
1 Year
Belt Adjustment
Bolt Tightening
Shipping Box
109 X 41 X 31in
Working Efficiency450 cu.ft./Hr.
450 cu.ft./Hr.
Weight (N.W./G.W.)
1910 /2121 lbs
