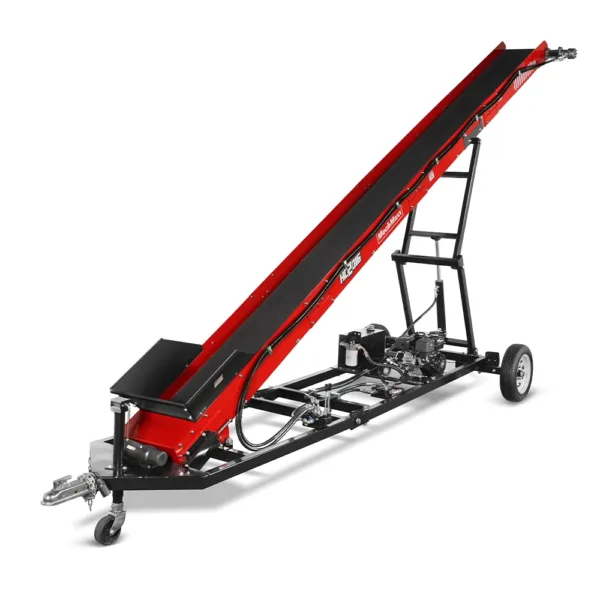

Firewood Conveyor, 7HP 212cc Gasoline Powered Max. 124″ Lift Height, 236” Length, 16″ Width, HC2016

Engine Power
DUCAR DH212  7hp
Engine Type
Single Cylinder, 4 Stroke, Air-Cooled, OHV
Conveyor Belt length
236 in
Conveyor Belt Wide
16 in
Max Discharge Height
124 in
Min Discharge Height
60 in
Drive System
Hydraulic
Hydraulic Pump
5.7 GPM Single Stage Pump
Hydraulic Fluid Type
AW-46
Hydraulic Tank Capacity
4.2 gal
Hydraulic Oil Filter Fineness
10 micron
Towing
Tow Bar with 2 in Coupler
Maximum Towing Speed
45 MPH
Tires Rims
13 in
Tires
19 in Radial (O. D.)
Overall Dimensions (LxWxH)
261x60x63 in
Finish
Powder Coating
Package Method
Plywood Case
Packing Size (LxWxH)
90x38x33 in
Warranty
1year
Weight (N.W./G.W.)
992/1124 lbs
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
