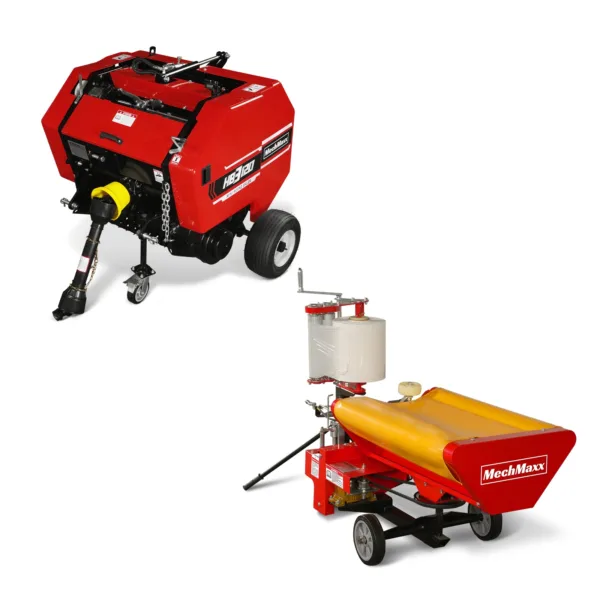

Hay Baler & Hay Wrapper Combo, HB3120, HW20

Hay Baler  HB3120

Power Required
15-50 Hp
Minimum Tractor Weight
1500 lbs
Bale Size （Diameter X  Width）
φ20 X 28 in
Bale Weight
30 – 50 lbs
Overall (L x W x H)
45 x 51 x 47 in
Pickup Width
31.5 in
Efficiency
1.24-3.11 mi/h
Capacity
80 – 100 Bales / Hour
Bale Wrapping
Twine Wrap
Hydraulics
Independent Hydraulic Power Unit, No Need Tractor Hydraulics
Electrical
Aviation Plug, Easy To Connect With Tractor
Tire Size
16 x 6.5 in
PTO Shaft Speed
540 rpm
Spline End
1.375in  Z6
3-Point Hitch
CAT 1
Gearbox Oil Type
80W90 EP Gear Oil
Finish
Powder Coating
Warranty
1 Year
Shipping Box
47 x 45 x 47 in
Weight (N.W./G.W.)
970 /992 lbs

Hay Wrapper HW20

Engine
DUCAR DH212
Suitable Bale Size
20 x 28 in ; 24 x 28 in
Overall (L x W x H)
59 x 34 x 40.5 in
Finish
Powder Coating
Warranty
1 Year
Shipping Box
61 x 27 x 27 in
Weight (N.W./G.W.)
276/298 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
