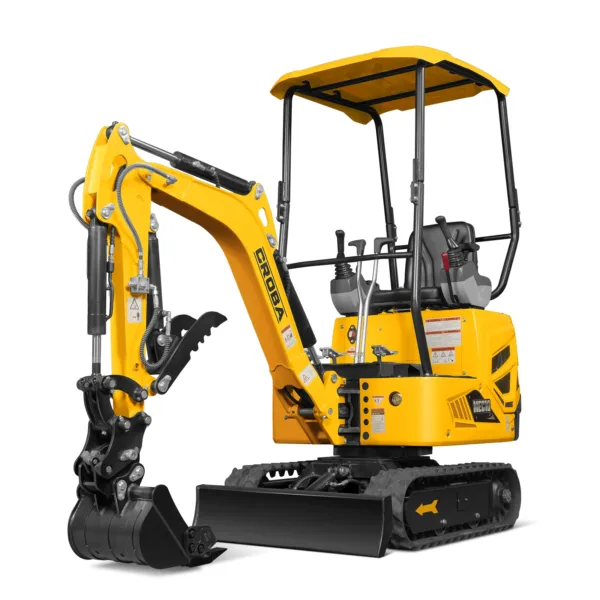

Mini Compact Excavator B&S VANGUARD 408cc 14hp Engine, 65.7” Max. Digging Depth, 2370 LBS Operating Weight, MEC10

ENGINE
Model
Vanguard 25V000
Displacement
408cc
No.Of Cylinders
1
Engine Output
14hp
Stroke
2.638in
Warranty for Engine
3-Year
Bore
3.465in
Fuel Tank
1.52 gal
Rated speed
3600rpm
Engine Oil
0.7gal
TRAVEL SYSTEM
Max. Travel Speed
0.75 mile/h
Ground Pressure
5.1psi
Maximum Traction Force
3035 lbf
Gradeability – Maximum
Maximum 30 degrees
Ground Clearance
15.9in
Operating Weight
2370lbs
HYDRAULIC SYSTEM
Hydraulic Oil Tank
3.96gal
Max.Discharge Flow
4.65 gpm
SWING SYSTEM
Swing Speed
8rpm
Tail Swing Radius
32.6in
DIGGING FORCE
Bucket Digging Force
1619 lbf
Arm Digging Force
1191 lbf
Bucket Capacity
0.7 ft³
Bucket Width
15 in
SCOPE OF WORK
Max.Digging Height
109 in
Min Turning Radius Of Working Device
48.1in
Max.Dumping Height
80 in
Max. Lifting Height Dozer Blade
5.9in
Max.Digging Depth
65.7in
Max. Depth Dozer Blade
7.4in
Max.Vertical Digging Depth
62.6in
Boom Swing – Left
53°
Max Digging Radius
119in
Boom Swing – Right
40°
Max.digging Radius At Ground Level
118.7in
DIMENSIONS
Transportation Length
82in/115in
Crawler Wheel Base
36in
Overall Width
37in
Track Belt/Shoe Width
7in
Overall Height（To Top Of Cab）
88.5in
Track Length
48.5in
Counter Weight Ground Clearance
16in
Track Width
37in
SERVICE
Package Method
Wood Case
Warranty for Machine
1 Year
Packing Size
91x40x98 in
Weight (N.W./G.W.)
2180/2440 lbs
