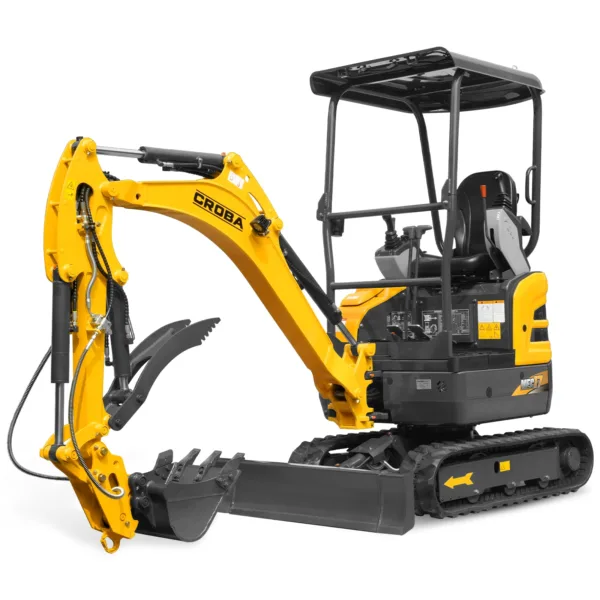

Mini Compact Excavator Kubota D902 Engine, 95” Max. Digging Depth, 4190 LBS Operating Weight, MEC17PRO

ENGINE
Model
Kubota D902
Rated speed
2300rpm
No.Of Cylinders
3
Displacement
54.8in³
Stroke
2.9in
Engine Output – Net
15.8hp
Bore
2.83in
Warranty For Engine
2-Year or 2,000-Hour Warranty, Whichever Comes First.
TRAVEL SYSTEM
Track Roller Qty
6
Maximum Traction Force – Low Speed
4047lbf
Type of tracks
Rubber
Ground Clearance
5.7in
Travel Speed – High
2.67 mile/h
Ground Pressure
4.2psi
Travel Speed – Low
1.37 mile/h
Gradeability – Maximum
Maximum 30 degrees
WEIGHT
Operating Weight
4190lb
HYDRAULIC SYSTEM
Pump Flow at 2,300 rpm
17gpm
Auxiliary Circuit – Secondary – Flow
2.6gpm
Auxiliary Circuit – Primary – Flow
9.1gpm
SWING SYSTEM
Swing Motor
Danfoss
Swing Speed
9.5rpm
Swing Motor Type
SW2.5K
Tail Swing Radius
25.6in
DIGGING FORCE
Boom Length
72in
Bucket Digging Force
3597lbf
Arm length
43.3in
Arm Digging Force
2136lbf
REFILING CAPACITIES & LUBRICATIONS
Fuel Tank
5gal
Hydraulic Oil Tank
3.6gal
Engine Oil
1gal
System Capacity
5.7gal
BUCKET
Bucket Capacity
1.4ft³
Bucket Width
17.7in
SCOPE OF WORK
Max.Digging Height
147in
Min Turning Radius Of Working Device
57in
Max.Dumping Height
104in
Max. Lift Above Ground
11in
Max.Digging Depth
95in
Max. Drop Below Ground
7.5in
Max.Vertical Digging Depth
81in
Boom Swing – Left
65°
Max Digging Radius
160in
Boom Swing – Right
50°
Max.digging Radius At Ground Level
157in
DIMENSIONS
Overall Length
133in
Blade Height
11.8in
Ground Contact Length （Transportation）
96in
Crawler Wheel Base
48.4in
Overall Width （Retracted/Expanded)
39/51in
Shoe Width
9.1in
Overall Height（To Top Of Cab）
94.7in
Track Length
62.7in
Counter Weight Ground Clearance
18in
Track Gauge（Retracted/Expanded)
30/42in
Ground Clearance
5.7in
Track Width（Retracted/Expanded)
39/51in
Blade Width（Retracted/Expanded)
39/51in
SERVICE
Package Method
Wood Case
Warranty For Machine
1 Year
Packing Size
112.6×43.7×99.2 in
Weight (N.W./G.W.)
4012/4580lb
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
