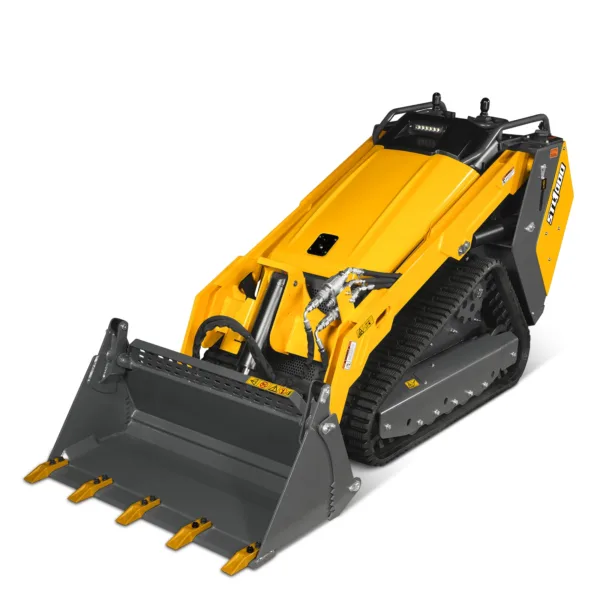

Mini Skid Steer Stand On Compact Track Loader ( 4 in 1 bucket included ) with 25HP KUBOTA D1105 Diesel Engine, Common Industry Interface (CII),…

ENGINE
Engine Model
KUBOTA D1105-E4B-CWL-1
Type
Vertical, water-cooled, 4-cycle diesel
Total Displacement
68 cu.in.
Number of cylinder
3
Brake Horse Power -Net intermittent without fan ISO 14396
18.2 kw/3000 rpm
Rated Speed
3000 rpm
Max. Torque
70.4Nm/2200 rpm
Low Idling Speed
850-950 rpm
DIMENSIONS
Overall Length (With 4-In-1 Bucket Parallel To Ground)
109 in
Overall Length (w/o 4-In-1 Bucket)
83 in
Overall Height
51.6 in
Overall Width With 4-In-1  Bucket
43.7 in
Overall Width w/o 4-In-1 Bucket Bucket
35.87 in
Weight With 4-In-1 Bucket (w/o Operator) lbs
3206 lbs
Weight w/o 4-In-1 Bucket
2895 lbs
Rated Operating Capacity (35%)
1,000 lbs ROC
Tipping Load
2,857 lbs
Wheelbase
42 in
Hinge Pin Height At Max. Lift
83.5 in
Reach At Max. Lift And 45° Dump
19.2 in
Bucket Capacity
6.53 cu.ft.
Track Width
7.87 in
Ground Clearance
6.30 in
Angle of Departure
24.8°
OPERATION
Steering And Drive
Dual axis, pilot-operated joystick
Lift And Tilt
Dual axis, manual-operated joystick
Transmission
Hydrostatic track drive system
Attachment
One lever with dual direction detent
PERFORMANCE
Attachment Mounting System
CII (Common Industry Interface)
Travel Speed (Fwd/Rev)
4.16 mph (6.70km/h)
Ground Pressure (with Operator)
4.12 psi (28.4kpa)
Battery Capacity
12V, 55Ah
Auxiliary Hydraulic Flow
13.5 gal/min
Auxiliary Hydraulic Pressure
2828 psi (19.5Mpa)
SERVICE & FILL CAPACITIES
Fuel Tank Capacity
8.32 gal
Hydraulic System
5.54 gal
Package Method
Wood Case
Warranty for Machine
1 Year
Warranty for Engine
2-Year or 2,000-Hour Warranty, Whichever Comes First.
Packing Size
87 x 38 x 59 in
Shipping Weight
3087 lbs
