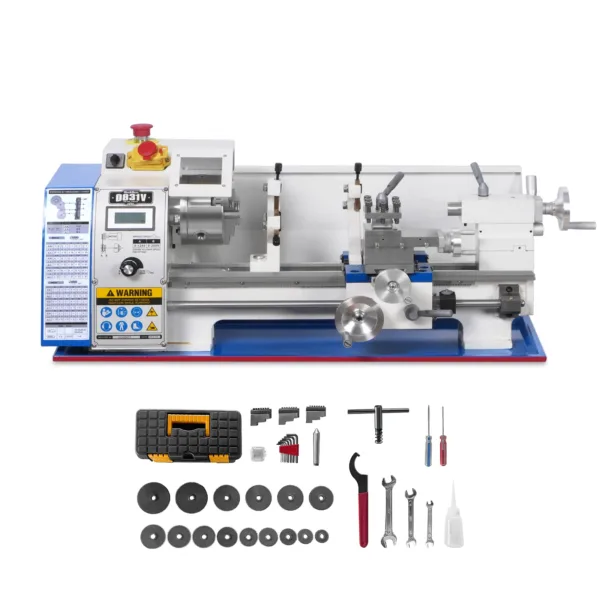

1.5‘’ Spindle Bore Metal Lathe Machine 8” x 16” High Precision Brushless Motor Mini 1.5HP Benchtop 0-2500 RPM Variable Speed Metal Working…

Motor
1.5 HP, 110V, Single-Phase, 10A, 60Hz
Swing Over Bed
8‑1/4″(210mm)
Swing Over Cross Slide
4‑5/8″(117mm)
Swing Over Saddle
3-1/2″(90mm)
Distance Between Centers
15‑3/4″(400mm)
Bed Width
4″(100mm)
Spindle Bore
1-1/2″(38mm)
Spindle Mount
Intrinsic back plate
Spindle Type
One-piece Spindle
Spindle Taper
MT#5
Tailstock Taper
MT#2
Tailstock Quill Travel
2″(50mm)
Cross Slide Travel
3-1/2″(90mm)
Compound Slide Travel
2-3/4″(70mm)
Carriage Travel
14-5/16(350mm)
Spindle Speeds
0–2500 RPM
Number of Speed Ranges
Variable
Longitudinal Feeds
0.0037-0.0068 in./rev.
Transverse Feed Rate
/
Leadscrew Size & Pitch
16mm(12TPI)
Threading Capacity – Inch
8–48 TPI（18kinds）
Threading Capacity – Metric
0.4–3.5mm(15kinds)
Maximum Tool Bit Size
15/32″(12mm)
Thread Dial Indicator
YES
Overall Dimensions
36″ W x 19″ D x 20″ H (914 x 480 x 490 mm)
Approximate Shipping Weight
190lbs(75 kg)

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
