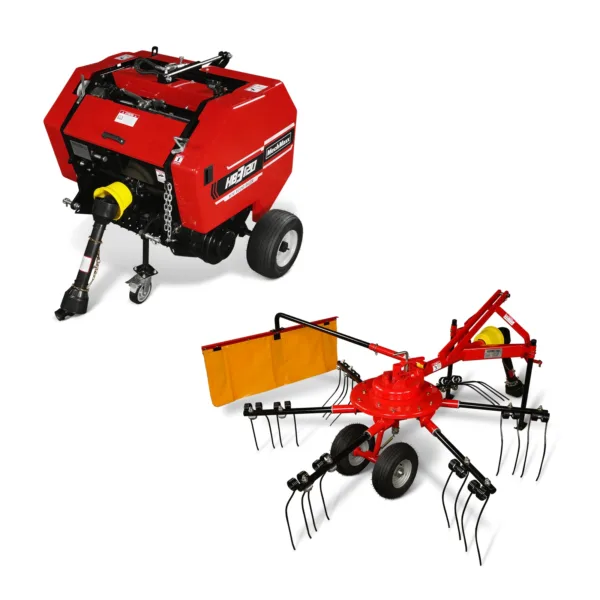

Hay Baler & Hay Rake Tedder Combo, HB3120, HT100

Hay Baler  HB3120

Power Required
15-50 Hp
Minimum Tractor Weight
1500 lbs
Bale Size （Diameter X  Width）
φ20 X 28 in
Bale Weight
30 – 50 lbs
Overall (L x W x H)
45 x 51 x 47 in
Pickup Width
31.5 in
Efficiency
1.24-3.11 mi/h
Capacity
80 – 100 Bales / Hour
Bale Wrapping
Twine Wrap
Hydraulics
Independent Hydraulic Power Unit, No Need Tractor Hydraulics
Electrical
Aviation Plug, Easy To Connect With Tractor
Tire Size
16 x 6.5 in
PTO Shaft Speed
540 rpm
Spline End
1.375in  Z6
3-Point Hitch
CAT 1
Gearbox Oil Type
80W90 EP Gear Oil
Finish
Powder Coating
Warranty
1 Year
Shipping Box
47 x 45 x 47 in
Weight (N.W./G.W.)
970 /992 lbs
Hay Tedder Combo HT100

Power Required
15-50 hp
Minimum Tractor Weight
1500 lbs
Working Width
100 in
Rake Diameter
79 in
Spreading With
63 in
Overall (L x W x H)
83 x 98 x 37 in
Arms No.
6
Spring Teeth No.
12
Working Speed
2.5-5 mi/h
Picking Up Objects
Various Types Of Straw, Pasture
Tire Size
13×5.0-6
PTO Shaft Speed
540 rpm
Spline End
1.375in  Z6
3-Point Hitch
CAT 1
Gearbox Oil Type
80W90 Gear Oil
Finish
Powder Coating
Warranty
1 Year
Shipping Box
57 x 24 x 29 in
Weight (N.W./G.W.)
357/405 lbs
