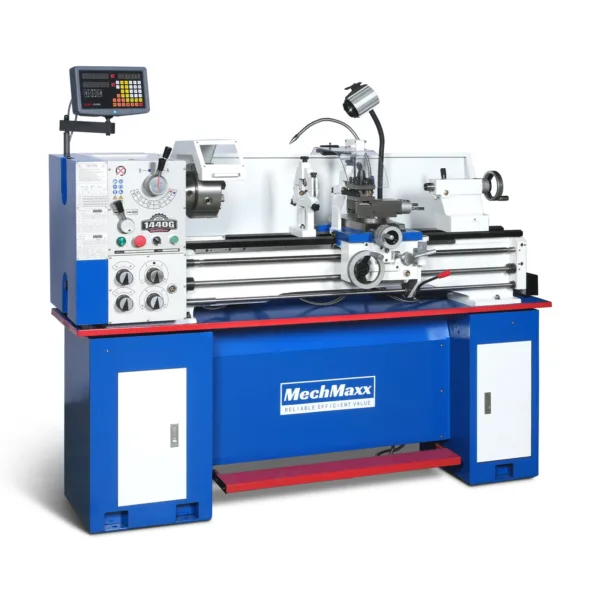

Industrial Metal Lathe Machine with DRO 14′ x 40” High Precision 84-1850 RPM Variable Speed Metal Working Machine 2HP Small Lathe with Stand 1440G

Motor
2HP(1500W) 220V 60HZ 1PHASE
Swing Over Bed
14”(355mm)
Swing Over Cross Slide
8-5/8″(220mm)
Swing Over Gap
19-5/8″(500mm)
Distance Between Centers
39-3/8″(1000mm)
Bed Width
7-7/16″(187mm)
Spindle Bore
2”(51mm)
Spindle Mount
Cam-lock Chuck
Spindle Type
D1-5
Spindle Taper
MT6
Tailstock Taper
MT3
Chuck Size
6″ 3-Jaw and 8″ 4-Jaw (2″ Chuck Bore on both)
Tailstock Quill Travel
3-3/4″(95mm)
Cross Slide Travel
6-11/16″(170mm)
Compound Slide Travel
2-15/16″(74mm)
Carriage Travel
40”(1000mm)
Spindle Speeds
84, 140, 230, 360, 430, 700, 1150, 1850RPM
Number of Speed Ranges
8
Longitudinal Feeds
0.002”-0.0548”
Transverse Feed Rate
0.00055”-0.015”
Leadscrew Size & Pitch
7/8” (22mm) 8TPI
Threading Capacity – Inch
4-56TPI(34 kinds)
Threading Capacity – Metric
0.4-7mm(26 kinds)
Module thread
0.35-5M.P(16 kinds)
Diametral thread
6-104D.P(36 kinds)
Maximum Tool Bit Size
5/8″x5/8″(16X16mm)
Thread Dial Indicator
YES
Coolant System
YES
Overall Dimensions
76”x30”x59”(1920x750x1500mm)
Approximate Shipping Weight
1378/1486lb(625/754kg)
