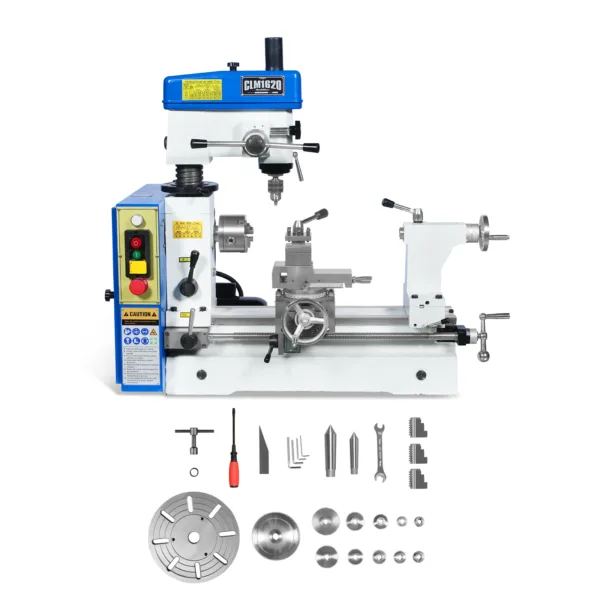

1 HP 16”x16” Multi-Function Metal Lathe Milling Machine Head for Metalworking Combo Lathe, Drilling, and Milling Operations with Powerful Motor,…

Lathe
Motor Power (Lathe)
1HP(750W), Single-Phase, 110V, 60HZ
Swing Over Bed
16-8/15”(420mm)
Swing Over Cross Slide
11-1/2″(120mm)
Distance Between Centers
15-3/4”(400mm)
Bed Width
5-5/16”(135mm)
Spindle Bore
11/14”(20mm)
Spindle Mount
Flange mount
Spindle Type
Integrated Spindle
DIA of  the chuck
4”(100mm)
Spindle Taper
MT3
Tailstock Taper
MT3
Tailstock Quill Travel
2-3/4”(70mm)
Carriage Travel
15”(380mm)
Carriage Leadscrew Diameter
25/32″(20mm)
Cross Slide Travel
4-8/11”(120mm)
Compound Slide Travel
3”(76.2mm)
Spindle Speed Range
160-1360RPM
Number of Speed Ranges
7
Longitudinal Feed Rate
0.002”-0.007” in/r
Transverse Feed Rate
NO
Leadscrew Size & Pitch
20mm 6TPI
Threading Capacity – Inch
8-120TPI
Threading Capacity – Metric
0.2-3mm
Thread Dial Indicator
NO
Maximum Tool Bit Size
1/2”x1/2”(12x12mm)
Drill/Mill
Motor Power (Mill Head)
Powered by the lathe’s motor
Mill Taper
MT3
Spindle Speed Range
117, 150, 220, 276, 290, 345, 360, 440, 450, 575, 640, 836, 1000, 1300
Number of Speed Steps
14
Spindle Travel
3-11/32″(85mm)
Drawbar Thread Size
3/8”(9.52mm)
Drawbar Length
10-3/4”(273mm)
Drawbar Thread Pitch
16TPI
Drill Capacity
19/32”(15mm)
End Milling Capacity
25/32″(20mm)
Face Milling Capacity
2-1/2″(63mm)
Vertical Travel (Z-Axis)
3-5/32”(80mm)
Distance: Spindle to Table
15-3/4”(400mm)
Distance: Spindle to Center Line
9-3/4”(248mm)
Headstock Height
3”(76.2mm)
Head Tilt Angle
0°
Swivel angle of the headstock
360°
Drive Type
Belt-driven AC Motor
Overall Dimensions
41”x23”x43”(1050x580x1090mm)
N.W/G.W
408/463lbs(180/210kg)
