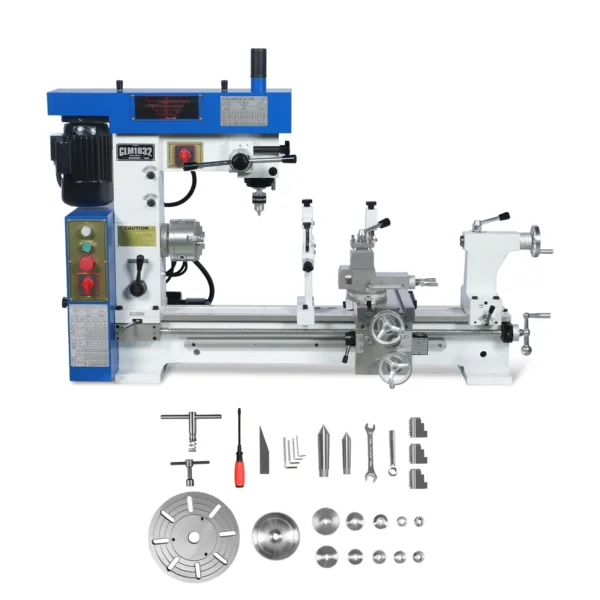

1 HP 16”x32” Multi-Function Metal Lathe Milling Machine Head for Metalworking – Lathe, Drilling, and Milling Operations with Powerful Motor,…

Lathe
Motor Power (Lathe)
1PH(750W), Single-Phase, 110V,  60HZ
Swing Over Bed
16-8/15”(420mm)
Swing Over Cross Slide
11-1/2″(120mm)
Distance Between Centers
31-1/2”(800mm)
Bed Width
5-5/16”(135mm)
Spindle Bore
1-1/10”(28mm)
Spindle Mount
Flange mount
Spindle Type
Integrated Spindle
DIA of  the chuck
5”(125mm)
Spindle Taper
MT4
Tailstock Taper
MT3
Tailstock Quill Travel
2-3/4”(70mm)
Carriage Travel
29-1/8”(740mm)
Carriage Leadscrew Diameter
25/32″(20mm)
Cross Slide Travel
7-7/8”(200mm)
Compound Slide Travel
3”(76.2mm)
Spindle Speed Range
160-1360RPM
Number of Speed Ranges
7
Longitudinal Feed Rate
0.002”-0.014”
Transverse Feed Rate
0.002”-0.014”
Leadscrew Size & Pitch
20mm 6TPI
Threading Capacity – Inch
4-120TPI
Threading Capacity – Metric
0.2-6mm
Thread Dial Indicator
YES
Maximum Tool Bit Size
1/2”x1/2”(12x12mm)
Drill/Mill
Motor Power (Mill Head)
1PH(750W)
Mill Taper
MT3
Spindle Speed Range
120, 200, 310, 350, 400, 450, 530, 600, 660, 900, 1380, 1450, 1670, 2140, 2350, 3000 RPM
Number of Speed Steps
16
Spindle Travel
4-5/16″(110mm)
Drawbar Thread Size
3/8”(9.52mm)
Drawbar Length
13”(330mm)
Drawbar Thread Pitch
16TPI
Drill Capacity
7/8”(22mm)
End Milling Capacity
1-1/8″(28mm)
Face Milling Capacity
3-5/32”(80mm)
Vertical Travel (Z-Axis)
/
Distance: Spindle to Table
14-1/2”(370mm)
Distance: Spindle to Center Line
6-1/8”(156mm)
Headstock Height
3-1/8”(79.4mm)
Head Tilt Angle
0°
Swivel angle of the headstock
360°
Drive Type
Belt-driven AC Motor
Overall Dimensions
57”x23”x45”(1440x580x1140mm)
N.W/G.W
595/653lbs(270/296kg)
