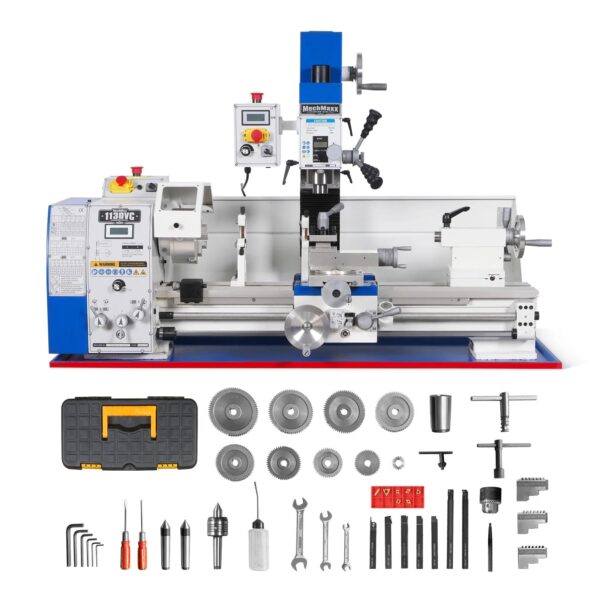

2 HP 11” x 30” Combination Lathe Milling Drilling Machine Brushless Motor, 1.5” Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop…

Lathe Parameter
Motor Power (Lathe)
2 HP, 110V, single-phase, 20A
Swing Over Bed
11-2/5″(290mm)
Swing Over Cross Slide
7-1/4″(185mm)
Swing Over Saddle
5-3/4″(147mm)
Distance Between Centers
29-1/2″ (750 mm)
Bed Width
7(180mm)
Spindle Bore
1-1/2″ (38 mm)
Spindle Mount
D1-4
Spindle Taper
MT#5
Tailstock Taper
MT#3
Tailstock Quill Travel
3-1/8″(85mm)
Tailstock Offset
Carriage Travel
27-1/2″ (700 mm)
Cross Slide Travel
5-3/4″(147mm)
Compound Slide Travel
3-3/8″
Spindle Speed Range
0–2000 RPM
Number of Speed Ranges
Variable
Longitudinal Feed Rate
0.017-0.25mm/R(0.0007-0.0098 in./rev.)
Transverse Feed Rate
0.07-0.53mm/r(0.0027-0.02in./rev)
Leadscrew Size & Pitch
20mm(8TPI)
Threading Capacity – Inch
8-56TPI(21KIDS)
Threading Capacity – Metric
0.4-3.5 mm(12kids)
Thread Dial Indicator
YES
Tool Post Type
4-way
Max Tool Bit Size
15/32”(12mm)
Mill/Drill Head Specifications
Motor Power (Mill Head)
1.5HP(1100W)
Spindle Taper
R8
Spindle Speed Range
0-2500RPM
Spindle Travel (Quill Stroke)
2″(50mm)
Quill Diameter
Ø60 mm
Drawbar Thread Size
7/16″-20
Drilling Capacity
1”(25mm)
End Milling Capacity
5/8″(16mm)
Face Milling Capacity
2-1/2″(63mm)
Vertical Travel (Z-Axis)
14-1/2″(370mm)
Head Tilt Angle
±90°
Distance: Spindle to Table
14-1/2″(370mm)
Distance: Spindle to Column
7-1/2″(190mm)
Column Type
Dovetail Slot
Drive Type
Belt Drive Brushless
Machine Dimensions & Utilities
Electrical Requirements
110V 1PHASE
Overall Dimensions
55”x29”x42”(1400x720x1050mm)
Net / Gross Weight
638/726lbs(290/330kg)
Shipping Dimensions
59”x30”x42”(1500x750x1050mm)
